Outdoor Ethernet/WiFi Biometric Security Devices Access Control

Android or Linux / 50000 pcs Face / Multiple Card

  • N8 Featured Image
  • N8 Featured Image
  • N8 Featured Image
  • N8 Featured Image
  • N8 Featured Image
  • N8 Featured Image
  • N8
  • N8
  • N8
  • N8
  • N8
  • N8

N8

◉ 8″ LCD with Touch

◉ Auto wake up within 2.5m

◉ In-screen Mifare Card

◉ Multiple identification modes: FaceFinger print Mifare card

◉ Various Interfaces: LAN/Wiegand/Relay and BT/WIFI/4G(Optional )

◉ IP66 Waterproof And Dustproof

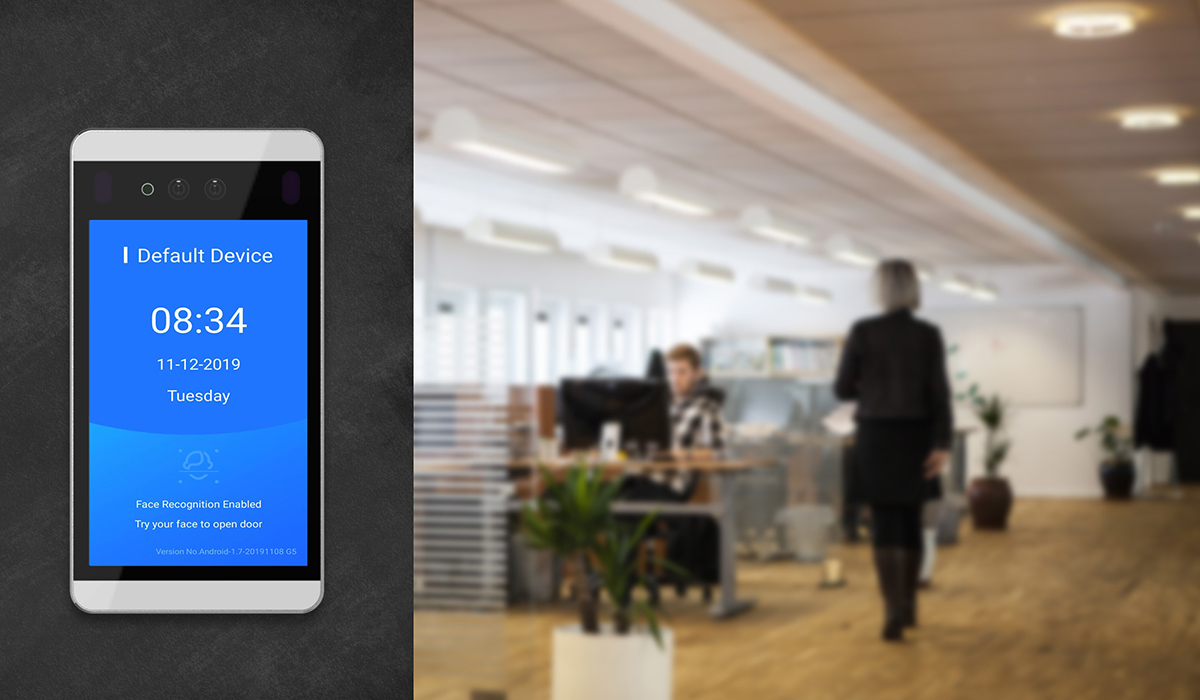

N8 indoor face recognition terminal

3601
xr_hand1
X5

Specification

N8
Item Parameter
Dimension 243.3*127.2*32
Weight 1.1KG
CPU RV1109 dual-core A7,1.5GHz RK3288  Cortex-A17,quad-core 1.6G
GPU/NPU NPU  1.2T (With RV109) GPU  Mali-T760MP4 (With RK3288)
Flash RAM 1GB (With RV109) RAM 2GB (With RK3288)
ROM 4GB(With RV109) ROM 16GB (With RK3288)
OS Linux 4.19(With RV109) Android8.1(With RK3288)
Face recognition 1:N Speed:≤1S
1:1Speed:≤1S
Face library:50000
Distance:TYP 1M,Max 2M;
visual angle:vertical ±35°,transverse±30°,
Support Life detection
Communication 10/100Mbps Ethernet
LCD 8 inch IPS HD(800*1280);
brightness 500cd/㎡
RGB Light support
IR Light support
Speaker Inside speaker,Power 1W
TP 5 points Capacitive touch panel,
reponse time<48ms,
surface hardness>6H,
transmittance≥85%
IC reader 13.56MHz,support M1/CPU,speed <0.1s
Distance :2.5-5cm
RGB Camera 2 million pixel camera, capture frame rate 25-25
Pixel:2 million
resolution:1920*1080
Pixel size:2.8um*2.8um
F-number:2.0
Focal length:4.3mm
View angle:68°
Dynamic range:105dB
IR Camera 2M,capture frame rate 25-25
Relay Support 1 channel (NO,NC,COM)
RJ45 Support
USB HOST USB2.0
485 Support
Wiegand input or output ,TYP input
GPIO Support 3 channel(door magnets, door opening buttons, fire alarms)
Adapter DC12V-2A
Power TYP:<10W
MAX:<15W
Operation
Temperature
⁃20℃~+60℃ (With RV109)
0℃~+45℃ (With RK3288)
Operation
humility
10%-90% No condensation
Storage
Temperature
⁃30℃~+70℃ (With RV109)
⁃10℃~+50℃ (With RK3288)
Storage
humility
20%-90% No condensation
ESD ±6kV touch、±8kV Air
Watch Dog Support
WIFI IEEE 802.11 b/g/n/ac (2.4G+5G)
